Woodburning stove Harvia Legend 300 Duo | 23,5 kW (15-30 m³)

SKU: 240-WK300LDLUX
GTIN: 6417659012409
HAN: WK300LDLUX
Category: Partner - Sauna heaters
Manufacturers: Harvia

Woodburning stove Harvia Legend 300 Duo | 23,5 kW (15-30 m³). Source of glowing heat and wonderful infusions for smaller and medium-sized saunas.

2.490,91 €

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available immediately
Delivery time: 2 - 3 months (DE - int. shipments may differ)

Description

Crackling of the fire and outgoing heat creates a wonderful atmosphere in your sauna. Harvia woodburning sauna heaters are manufactured with over 60 years of experience. The product range combines traditional sauna bathing with modern design and up-to-date materials.

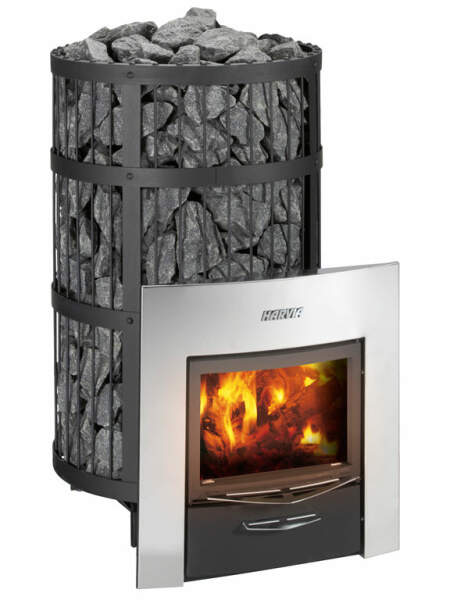

Harvia Legend 300 Duo

Large amount of stones, wonderful sauna bath.

Harvia Legend woodburning sauna heaters give you the ultimate sauna experience. The black steel frame includes an impressive amount of stones, and as they heat up, you will experience a wonderful sauna bath even at a lower temperature. The large amount of stones ensures solid heat even if the fire goes out in the meantime.

The combustion chamber of Legend stoves has a modern grate structure, which separates the combustion air. Part of the air is directed to the upper part of the combustion chamber. in this way, combustion is cleaner and more efficient. In addition, the grate structure increases the service life of the furnace. Since the safety distance from the side walls and the back wall to the fuel is smaller than usual, you have more room to place the benches. The Legend sauna heaters can be equipped with a hot water tank (Chimney model) can be added.

Harvia Legend 300 Duo models are designed for people who want to heat their saunas comfortably from another room or from outside. The opening direction of the door can be changed, making these stoves extremely easy to use. The adjustable feet make it easy to place the heater in the sauna.

The size of the sauna is 15-30 m³. Stone quantity maximum 260 kg.

Technical data:

Model	Legend 300 Duo
Sauna cabin min m³	15
Sauna cabin max m³	30
Stone chamber max kg	260
Mass/mm width	600
Mass/mm height	1040
+ adjustable feet	0-30
Mass/mm depth	660 + 120
Weight kg	99
Oven power kW	23,5
Safety distance/mm: from masonry walls E	50 (*
Safety distance/mm: from the wooden walls and benches:
to the sides B	200
to the back C	250
in front of the sauna heater D	700
Safety distance/mm: from the surface to the ceiling a min.	1000
Thickness of the lid of the fireplace mm	6
Position of the smoke hole/mm top: from the back edge to the center of the hole	210 ± 5
Diameter of smoke opening mm	115
Maximum length of firewood cm	47
(* Leave 50 mm between the stove and the walls, provided that the air can circulate in front of the stove and on one side. If the stove is installed in a niche, leave 100 mm of air between the stove and the side walls and 100 mm behind the stove.

Stones not included in the price!

Power:	23,5 KW
:	gewerblich / öffentlich
:	Harvia
