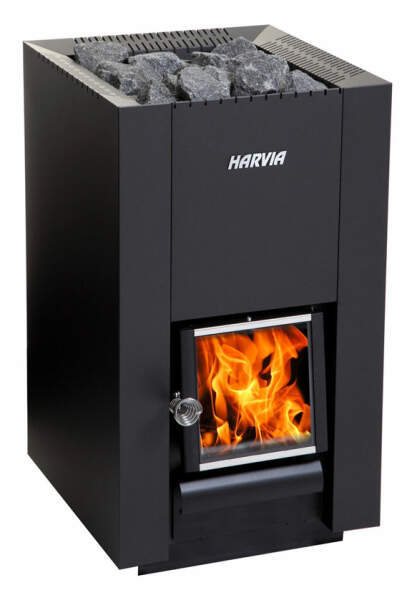

Woodburning stove Harvia Linear 16 | 17,9 kW (6-16 m³)

SKU: 240-WK160C
GTIN: 6417659017909
HAN: WK160C
Category: Partner - Sauna heaters
Manufacturers: Harvia

Harvia Linear 16 woodburning sauna heater. Source of glowing heat and wonderful infusions for small and medium-sized saunas.

765,53 €

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available immediately
Delivery time: 4 - 6 weeks (DE - int. shipments may differ)

Description

Crackling of the fire and outgoing heat creates a wonderful atmosphere in your sauna. Harvia woodburning sauna heaters are manufactured with over 60 years of experience. The product range combines traditional sauna bathing with modern design and up-to-date materials.

Harvia Linear 16 (WK160C)

Harvia Linear 16 sauna heater is a source of glowing heat and wonderful infusions for small saunas. The simple but elegant design of the heater gives a timeless style to your sauna. Through the cast-iron glass door, the glow of the fire illuminates the sauna, while the mood also rises. The opening direction of the door can be changed.

The fire chamber and combustion air ducts are designed to heat up the sauna quickly and achieve clean combustion.

BImSchV is required in Germany, Austria and Denmark.

The recommended sauna size is 6-16 m³ and the maximum amount of stones 36 kg.

Technical data:

Model	WK160C
Sauna cabin min m³	6
Sauna cabin max m³	16
Stone chamber max kg	36
Mass/mm width	420
Mass/mm height	735
Mass/mm depth	450
Weight kg	46
Oven power kW	17,9
Safety distance/mm: to the sides and to the back, masonry walls E	50 (*
Safety distance/mm: to the sides (b), walls and couches made of combustible material	300
Safety distance/mm: to the rear (c), walls and couches of combustible material	350
Safety distance/mm: in front of the heater (D)	400
Safety distance/mm: from the surface to the ceiling a min.	1300
Cover of the fireplace mm	5
Position of smoke opening/mm at the back: from the bottom to the center of the hole	560
Position of smoke opening/mm top: from the back edge to the center of the hole	130
Top connection opening: position from the bottom mm	635
Diameter of smoke opening mm	115
(* Leave 50 mm between the stove and walls, provided that the air can circulate in front of the stove and on one side. If the stove is installed in a niche, leave 100 mm between the stove and the walls for air circulation.

Stones not included in the price!

Power:	17,9 KW
:	gewerblich / öffentlich
:	Harvia
