Crackling of the fire and outgoing heat creates a wonderful atmosphere in your sauna. Harvia woodburning sauna heaters are manufactured with over 60 years of experience. The product range combines traditional sauna bathing with modern design and up-to-date materials.

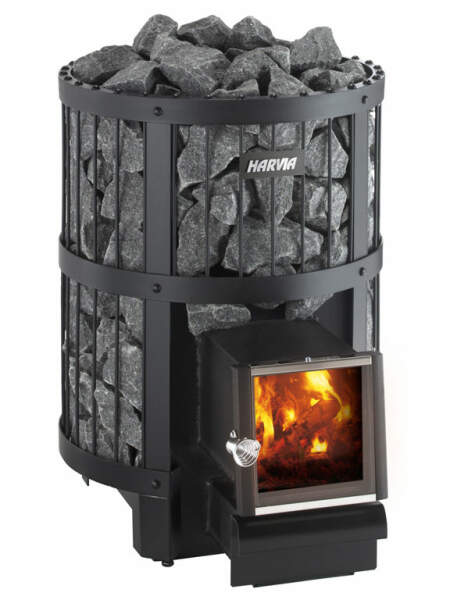

Harvia Legend 150 SL
Large amount of stones, wonderful sauna bath.
Harvia Legend woodburning sauna heaters give you the ultimate sauna experience. The black steel frame includes an impressive amount of stones, and as they heat up, you will experience a wonderful sauna bath even at a lower temperature. The large amount of stones ensures solid heat even if the fire goes out in the meantime.
The combustion chamber of Legend stoves has a modern grate structure, which separates the combustion air. Part of the air is directed to the upper part of the combustion chamber. in this way, combustion is cleaner and more efficient. In addition, the grate structure increases the service life of the furnace. Since the safety distance from the side walls and the back wall to the fuel is smaller than usual, you have more room to place the benches. The Legend sauna heaters can be equipped with a hot water tank (Chimney model) can be added.
Harvia Legend 150 SL models are designed for people who want to heat their saunas comfortably from another room or from outside. The opening direction of the door can be changed, making these stoves extremely easy to use. The adjustable feet make it easy to place the heater in the sauna.
The size of the sauna is 6-13 m3. Stone quantity maximum 120 kg.
Technical data:
Model |
Legend 150 SL |
Sauna cabin min m3
|
6
|
Sauna cabin max m3
|
13 |
Stone chamber max kg |
120 |
Mass/mm width |
530 |
Mass/mm height |
740 |
+ adjustable feet mm
|
0-30
|
Mass/mm depth |
530 + 200
|
Weight kg |
62 |
Oven power kW |
16 |
Safety distance/mm: from masonry walls E |
50 (*
|
Safety distance/mm: from the wooden walls and benches: |
|
to the sides B |
200 |
to the back C |
250
|
in front of the sauna heater D
|
500 |
Safety distance/mm: from the surface to the ceiling a min. |
1000 |
Thickness of the lid of the fireplace mm |
5 |
Position of the smoke hole/mm top: from the back edge to the center of the hole |
180 ± 5 |
Diameter of smoke opening mm |
115 |
Maximum length of firewood cm |
35 |
(* Leave 50 mm between the stove and walls, provided that the air can circulate in front of the stove and on one side. If the stove is installed in a niche, leave 100 mm of air between the stove and the side walls and 100 mm behind the stove. |
Stones not included in the price!
