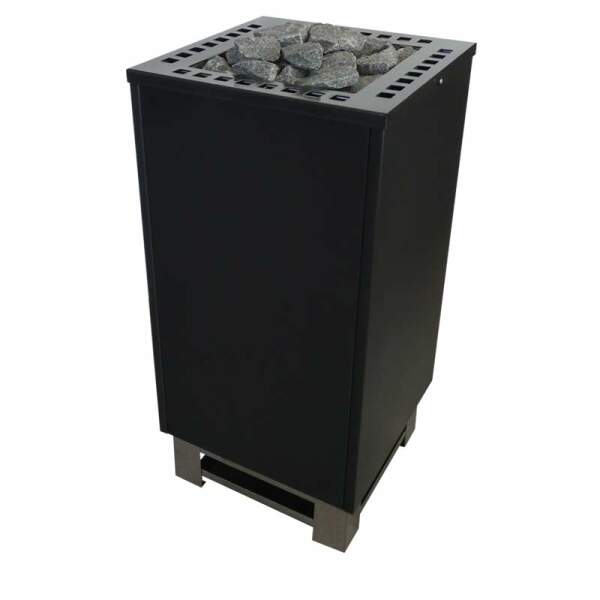

square premium sauna heater Kubo-therm - Ewald Lang
The new sauna heater series Kubo-therm from Ewald Lang impresses with its powerful construction - in a timeless and compact design body, the Kubo electric heater is perfect for modern home or business saunas.
especially in sauna cabins with large glass surfaces, the Lang electric heater functions as a timeless eye-catcher - due to its practically narrow footprint with only 0.14 m², it is suitable for both small private saunas (from 5 m³) and medium-sized professional cabins (up to 18 m³).
Ewald Lang's exclusive and proven Double shell construction together with the slim shape, ensures a constant exchange of air, resulting in a dry and pleasant sauna climate is created. The resulting minimal heat-up time guarantees an extremely environmentally friendly and economical operation.
Optional equipment - Kubo-therm sauna heaters can be extended in many ways:

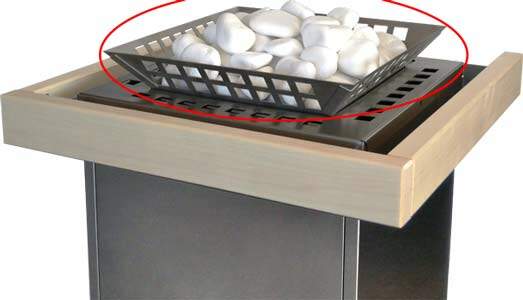

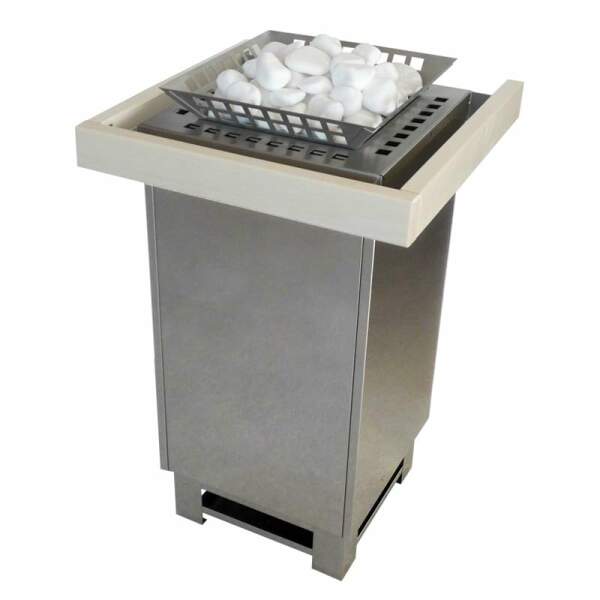

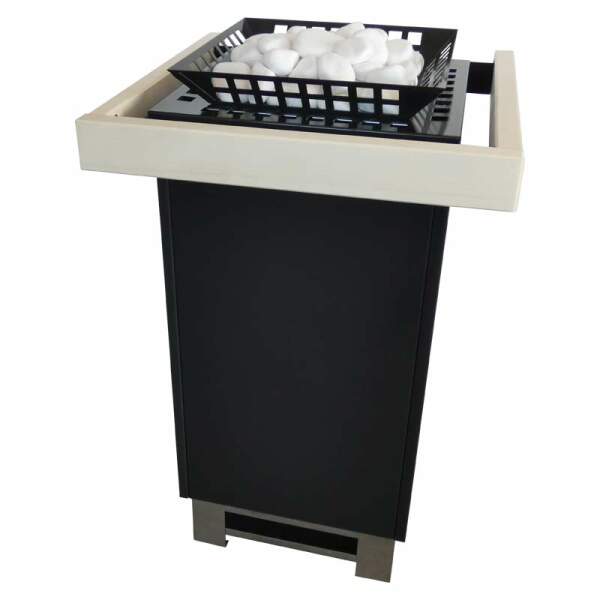

- Stone collar attachment for approx. 10 kg larger stone quantities - made of stainless steel or anthracite black, depending on the model
- Deco sauna stones in white, approx. 10 kg
- Stove railing made of wood (3-sided), with 2 holding angles in stainless steel
- Cable cover in chrome steel
technical data - sauna heater Kubo-therm by Ewald Lang
|
Kubo-inox K38i |
Kubo-noir K38n |
Dimensions w x d x h |
38 x 38 x 78 cm |
38 x 38 x 78 cm |
Outer casing |
Stainless steel, blank (4-sided) |
anthracite black (4-sided) |
Head plate |
Stainless steel, brushed |
anthracite black |
Stone basket insert |
Stainless steel, without contact to radiators |
Stainless steel, without contact to radiators |
Radiator support |
Stainless steel |
Stainless steel |
Inner jacket |
Stainless steel |
Stainless steel |
Underframe |
Stainless steel with integrated drip shield |
Stainless steel with integrated drip protection |
Furnace connection |
integrated, screwed connection downwards |
integrated, connection screwed downwards |
Heater |
1500 Watt, especially durable |
1500 Watt, especially durable |
Heating capacities |
6.0 | 7.5 | 9.0 kW - 1 circuit 10,5 | 12,0 kW - 2 circuits |
6.0 | 7.5 | 9.0 kW - 1 circuit 10,5 | 12,0 kW - 2 circuits |
Electrical connection |
400V 3n AC |
400V 3n AC |
Safety distance |
min. 7 cm - all sides to combustible parts |
min. 7 cm - all sides to combustible parts |
Stone filling |
approx. 20 kg |
approx. 20 kg |
Net weight of the furnace |
approx. 22 kg |
approx. 22 kg |
