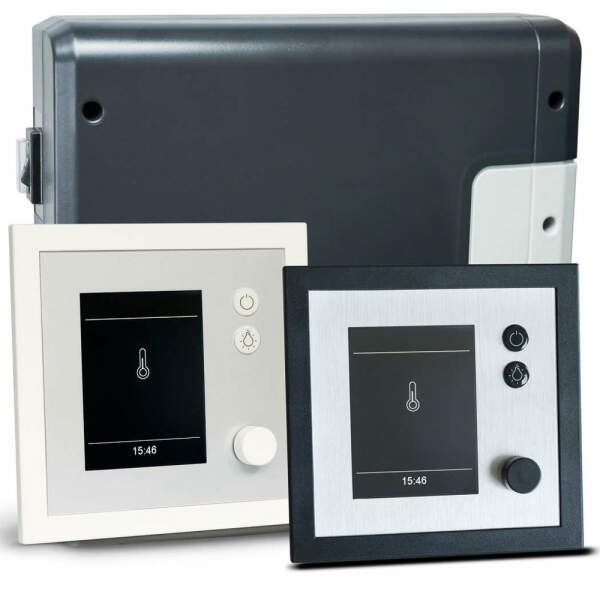

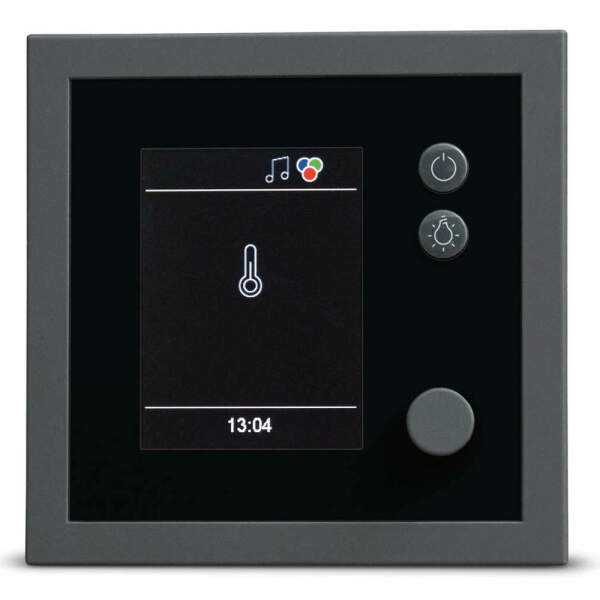

Sauna control eos Emotec d White

Digital bench sensor incl. sensor housing (beige color) and 5m sensor cable for more accurate control of bathing temperature.
Optimal for very large installations or saunas with complicated layouts.
Compatible with the following sauna controls:
- EmoTec series
- EmoStyle series
- EmoTouch ii + Sauna, EmoTouch 3 Sauna

Remote start module (Sauna Bus System) for remote control of the sauna (on / off) at distances up to 100 m. With this module your sauna or steam bath can be started from a remote point (e.g. hotel reception). With an additional output this module can also be connected to external signal sourcese.g. building control system.

• With the remote start module you can switch on/off your sauna from a great distance.
• The integrated LED light shows the current status (stand-by, operation, error).
• Quick and easy installation. Connection with a 6p6c rj12 cable.
• With elegant cover made of high quality walnut wood.

10 m connection cable (6p6c) included.
Connecting cable 6p6c 25 m: 260-94.4647
Connecting cable 6p6c 50 m: 260-94.4648

Download operating instructions Remote start module EOS

Enables the worldwide Remote control Of your sauna via Smartphone or tablet. Waiting times are a thing of the past, as the sauna is already preheated to the desired temperature and humidity values on the way home preheated humidity values. The foolproof operation corresponds to the look and logic of the mounted sauna control unit.
Requires an active internet connection. A separate power supply is not necessary. The 4.5 stars - EOS Sauna Control App can be downloaded from Google Play or in the App Store free of charge downloaded from the App Store.

Download Technical Data Sheet Web App EOS
Download operating instructions Web-App EOS

The sbm-hot module triggers an intensive heating phase of the furnace and sets the temperature you have set for the time you have preselected Time period available. This ensures powerful infusions guaranteed. After that, the function switches off again. Would you like it to be even more convenient? Then automate Automate the heating operation and set the module with a time interval. Of course, an intensive heating time for a later vigorous infusion on your part can also be triggered manually in the cabin.

High quality Stainless steel housing with integrated illuminated ring. Recessed mounting.

Set includes: Pushbutton with electronic unit, incl. connecting cable 10 m and protective cap.

Download operating instructions quick heating function Hot EOS

The sbm-eco module saves money. It regulates your sauna cabin to your preset Basic heat preset by you. An adjustable interval mode gives you the freedom to set the times when cabins are not in use to low, energy-saving operation operation. You can preselect in 30-minute increments up to 240 min. Pressing the Eco button repeatedly immediately ends the energy-saving mode and brings your sauna cabin quickly back up to temperature. Thus, the next sauna session can take place within a very short time.

High quality Stainless steel housing with integrated light ring. Recessed mounting.

Set includes: Pushbutton with electronic unit, incl. connecting cable 10 m and protective cap.

Download operating instructions energy saving function Eco EOS

The sound module allows you to play music in your sauna and control it from the sauna control panel. The module has the stereo amplifier 2 x 15 w and an integrated mp3 player and nf 3.5 mm jack input. The music files can be stored on a SD card, USB connection resp Bluetooth can be fed into the system. Compatible control units: EmoTec, EmoStyle, EmoTouch ii+ Sauna, EmoTouch ii+ Steam and EmoTouch 3.

Optional built-in speaker from eos for the sauna cabin: Art. No. 260-94.5429

Download instruction manual sound module eos
Download operating instructions sound module USB extension eos

With the knx / Modbus module you can connect your sauna control to the building control system via knx- or Modbus protocol for Remote control remote control. Universal fit for Emotec, EmoStyle and EmoTouch 3 series control units. Allows remote control for: Sauna heater with or without vaporizer, setting of temperature and humidity, light control with dimming, switching for potential free output, remote monitoring of room temperature and humidity, cabin status etc Very easy installation. Connection via sauna bus 6p6c line to the sauna control unit. Compatible with BMS systems with knx and Modbus protocol.
For knx systems - knx firmware from ets5 required.

Download instruction manual infrared module EOS

With the knx / Modbus module you can connect your sauna control to the building management system via knx- or Modbus protocol for Remote control remote control. Universal fit for Emotec, EmoStyle and EmoTouch 3 series control units. Allows remote control for: Sauna heater with or without vaporizer, setting of temperature and humidity, light control with dimming, switching for potential free output, remote monitoring of room temperature and humidity, cabin status etc Very easy installation. Connection via sauna bus 6p6c line to the sauna control unit. Compatible with BMS systems with knx and Modbus protocol.
For knx systems - knx firmware from ets5 required.

Download operating instructions Modbus module EOS

With the colored light module, you can use your sauna control system to control almost any led light source (e.g. led spots, led strips, etc.) No transformer required, direct connection of leds to the module. Compatible with voltage-based (0 - 24 v) and with current-based (0 - 3000 mA) leds. Output: rgb (three individually adjustable color channels) and white light (adjustable and can be coupled with main light). In matching EmoTec design housing.
Available in two outputs: with 75 W and with 150 W.
All outputs in double version - for 6-pin flat connector and for classic screw connector.
Note: Only for led strips with common "-". For led strips with common positive pole a pole changer 260-94.7050 is required

Download technical data sheet color light module EOS
Download instruction manual color light module EOS

With the colored light module, you can use your sauna control system to control almost any led light source (e.g. led spots, led strips, etc.) No transformer required, direct connection of leds to the module. Compatible with voltage-based (0 - 24 v) and with current-based (0 - 3000 mA) leds. Output: rgb (three individually adjustable color channels) and white light (adjustable and can be coupled with main light). In matching EmoTec design housing.
Available in two outputs: with 75 w and with 150 w.
All outputs in double version - for 6-pin flat connector and for classic screw connector.
Note: Only for led strips with common "-". For led strips with common positive pole a pole changer 260-94.7050 is required

Download technical data sheet color light module EOS
Download instruction manual color light module EOS

With the sbm-ir module you can use in your sauna Infrared radiators or Foils in your sauna. Three modes are available to you: sauna only, infrared only or sauna + infrared at the same time.
Functions and features:
- 3 separately controllable outputs - 2 x 1,500 w dimmable, 1 x 500 w switchable
- Up to 5 freely assignable channels that can be individually divided into zones as desired (front, back, side, etc.)
- Outputs can be bundled or controlled separately.
- Temperature control 30 - 70°C. Control by temperature or by intensity possible.
- For all IR emitters - IR heaters, IR heating foils, etc.
- Up to 3 modules can be connected to one sauna control unit - up to 10,5 kw total power possible.
- Can be used as an extension for IR control units Emotec ir, InfraStyle and InfraStyle i.

Download technical data sheet infrared module EOS
Download Instruction Manual Infrared Module EOS
