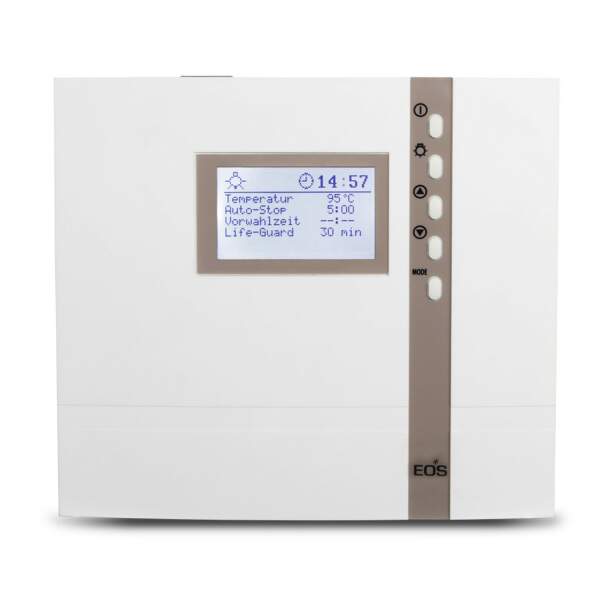

the model d1 of the econ d series from eos in the field of sauna controls is characterized by ease of use, durability and easy installation. the model has a multi-line LEd display that allows you to see the current status or settings of the sauna control. the econ d1 from eos comes up with many options for configuring your sauna. For example, you can control the temperature digitally, specify the language of the control depending on the use, manage your sauna lighting with up to 100w via the control or connect a sauna heater, out ofthe box, with up to 9kw.
the eos sauna control units in the econ d series can be mounted on the wall as well as recessed into the floor, and due to their low height, the control units look very simple but also comfortable and do not attract attention. the heat limitation in the "d1" model is from 30°C - 115°C with a safety cut-out up to 139°C.
In addition to the control unit, a temperature sensor is included in each case so that the control unit can also work. the eos sauna control units of the econ d series are exclusively suitable for the Finnish sauna.
What is often a problem with other sauna controls, should not cause you any problems with the eos econ d series, because in the event of a power failure, all settings remain stored for up to 24h, only then does it become critical and you have to reset all the settings again.
datasheet and manual as PdF download
data sheet sauna control eos econ d1
Assembly instructions sauna control eos econ d1
