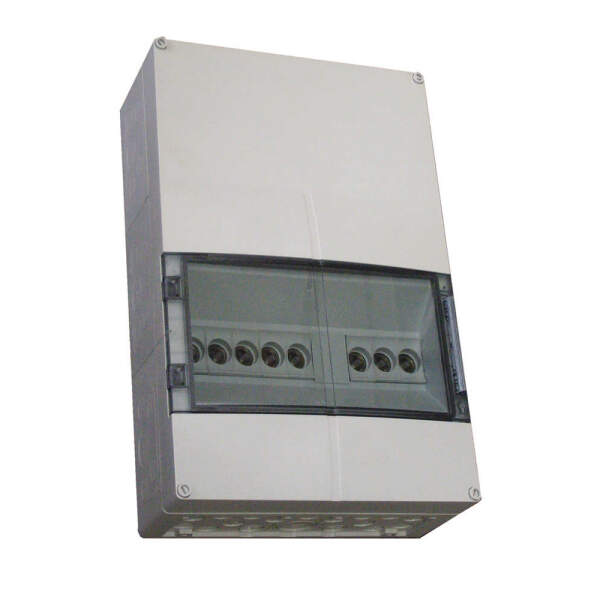

Power switchgear 36 kW | eos lsg 36

SKU: 260-94.4392
Category: Sauna control unit
Manufacturers: EOS

" power extension of the sauna control unit by 9 / 18 / 36 kW
" very high durability
" quick and simple installation
" for wall mounting

Model

Price on request

Available immediately

Online price / delivery time request

Description

Power switchgear for power extension of the sauna control system | eos

High-quality power switching device with switching capacities of 9 / 18 / 36 kW for the Extension of control units with 9 kW. In combination with the sauna control unit, dual-circuit sauna heaters with a maximum of 18 / 27 / 45 kW can be controlled.
The compact and space-saving design of the sauna control unit is packed in an elegant housing with a split front cover, which ensures very high reliability and durability.

Eos power switchgear - models

eos power switchgear	Emotec l09 R	lsg 18	lsg 18 H	lsg 36	lsg 36 H
Part number	94.4998	94.5730	94.5731	94.4392	94.4230
Switching power sauna heater	9,0 kW	18,0 kW	18,0 kW	36,0 kW	36,0 kW
Switching power evaporator			4,0 kW		4,0 kW
Electrical connection	400 v 3n ac 50 Hz
Connection possibilities	Rear side	Bottom/rear side	Bottom/rear side	All 4 sides	All 4 sides
Dimensions HxWxD in cm	24,23,7	27x30x10	27x30x10	45x30x14,2	45x30x14,2

Note: For the lsg 18 / lsg 36 power switchgear, 3 or 6 Neozed d02 fuse links are required according to the existing on-site cable cross-sections. Fuse links are not included in the scope of delivery. You will find the appropriate fuse links at the end of this page.
